BOBINE DE RECHANGE 110VCA 50/60HZ

BOBINE DE RECHANGE 110VCA 50/60HZ

LXD3F7
Neuf

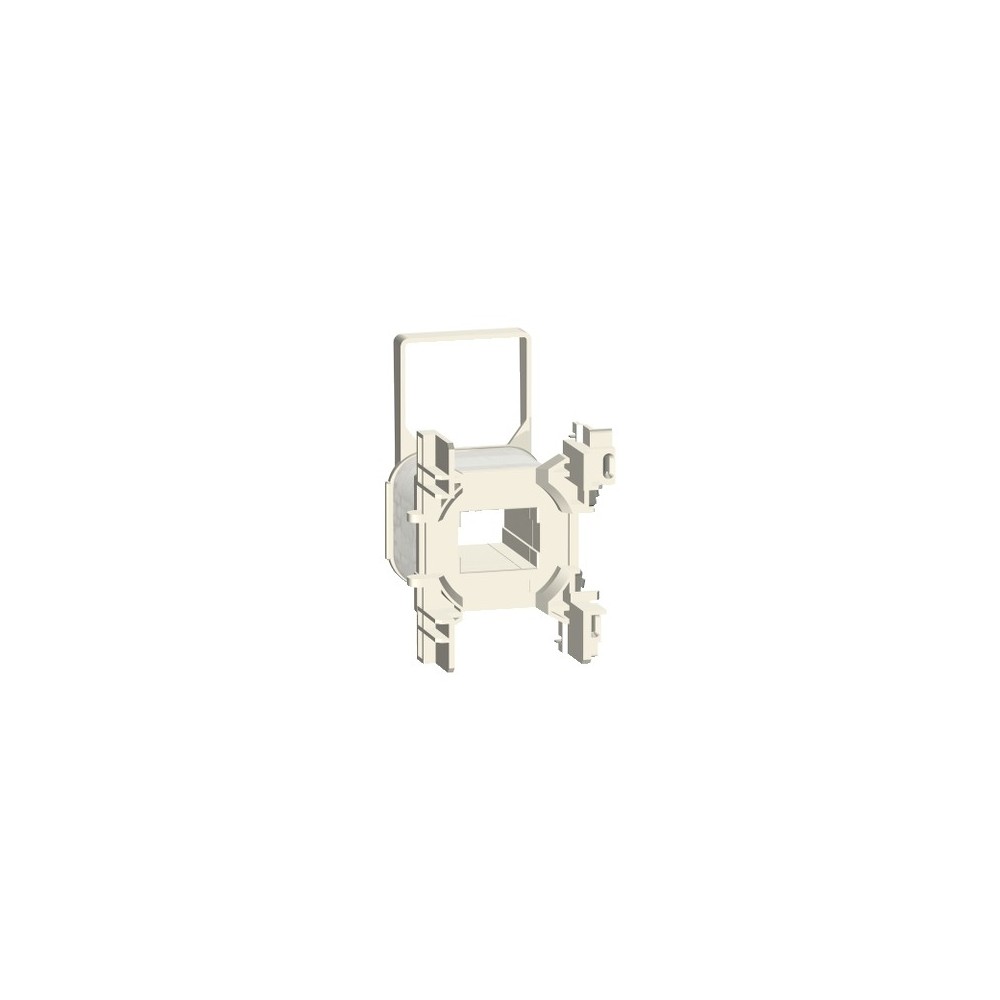

Tesys D - Bobine de rechange 110 vca 50/60 hz pour contacteurs lc1d40a a lc1d65a

Dépêchez-vous! seulement 15 articles laissés en stock.
192 911 Ar
HT
Quantité

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Principales
Gamme TeSys
Type de produit ou équipement Bobine de contacteur
Nom de l'appareil LXD3
Type de circuit de commande CA à 50/60 Hz
[Uc] tension circuit de commande 110 V CA 50/60 Hz
Résistance moyenne 42,28 Ohm à 20 °C
Inductance de circuit fermé 2,5 H
Compatibilité produit LC1D40A...D65A
LC1DT60A
LC1DT80A
Durée de vie mécanique 6 Mcycles
Vitesse de commande maxi 3600 cyc/h 60 °C

Complémentaires
Technologie bobine Sans module d'antiparasitage intégré
: LXD3F7
: 15 Produits
Dépêchez-vous! seulement 15 articles laissés en stock.
Neuf

Téléchargement

BOBINE DE RECHANGE

BOBINE DE RECHANGE 110VCA 50/60HZ

Téléchargement (219.85KB)
