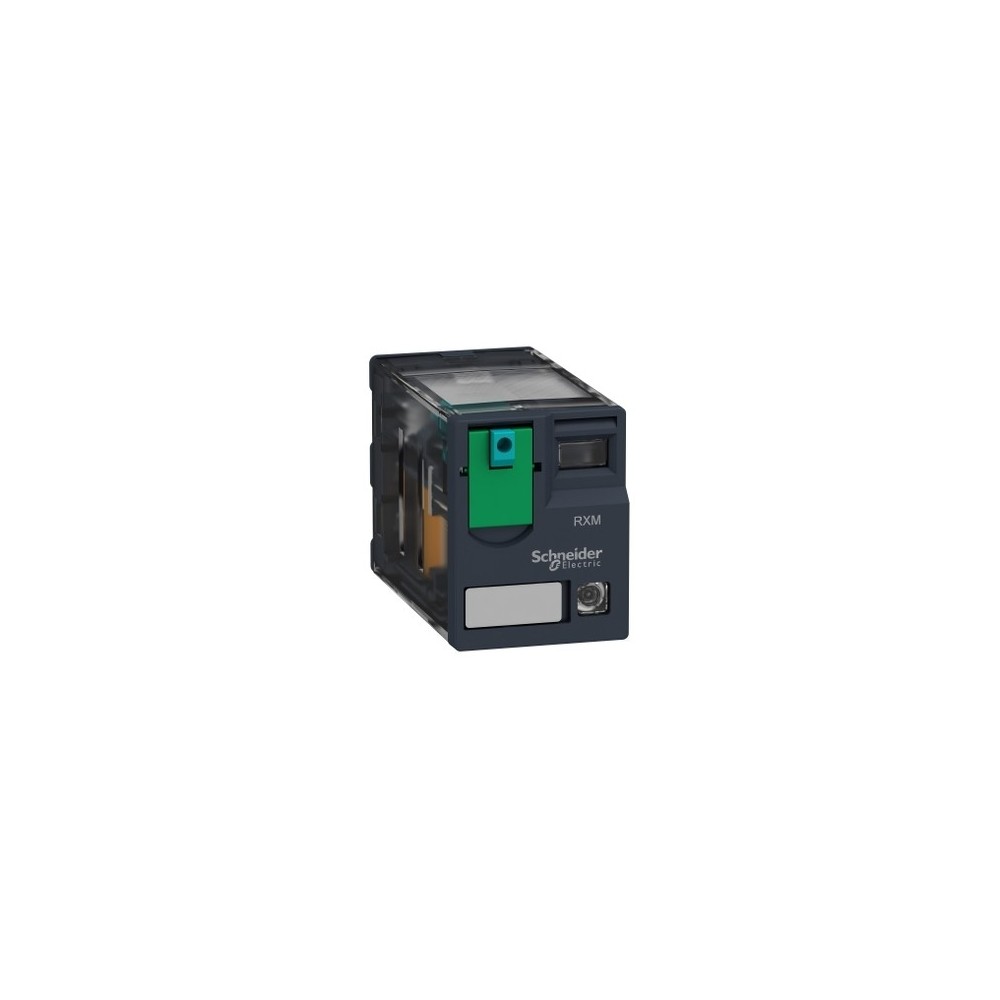

RELAIS MINIATURE 4 CO LOW LEVEL AVEC LED 24V DC

RELAIS MINIATURE 4 CO LOW LEVEL AVEC LED 24V DC

RXM4GB2BD
Neuf

Relais miniat - embroch - test+DEL - 4OF bas niv - 3A - 24Vcc

Dépêchez-vous! seulement 20 articles laissés en stock.
42 343 Ar
HT
Quantité

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

DESCRIPTION :

Principales

Gamme de produit

Relais électromécanique Harmony

Nom de gamme

RXM series

Type de produit ou équipement

Relais enfichable

Type de relais

Miniature relay

Description des contacts

4 F/O

Etat LED

Avec

Type de commande

Bouton de test verrouillable

[Uc] tension circuit de commande

24 V CC

[Ithe] courant thermique d'emploi sous enveloppe

3 A à -40…55 °C



Complémentaires

Seuil de tension de retombée

= 0,1 Uc

Courant de charge

3 A à 250 V CA
3 A à 28 V CC

Temps de fonctionnement

45 ms

Pouvoir de commutation maximum

750 VA/84 W

Résistance moyenne

650 Ohm à 20 °C +/- 10 %

Consommation moyenne de la bobine

0,9 W

: RXM4GB2BD
: 20 Produits
Dépêchez-vous! seulement 20 articles laissés en stock.
Neuf

Téléchargement

RELAIS MINIATURE

RELAIS MINIATURE 4 CO LOW LEVEL AVEC LED 24V DC

Téléchargement (677.99KB)
