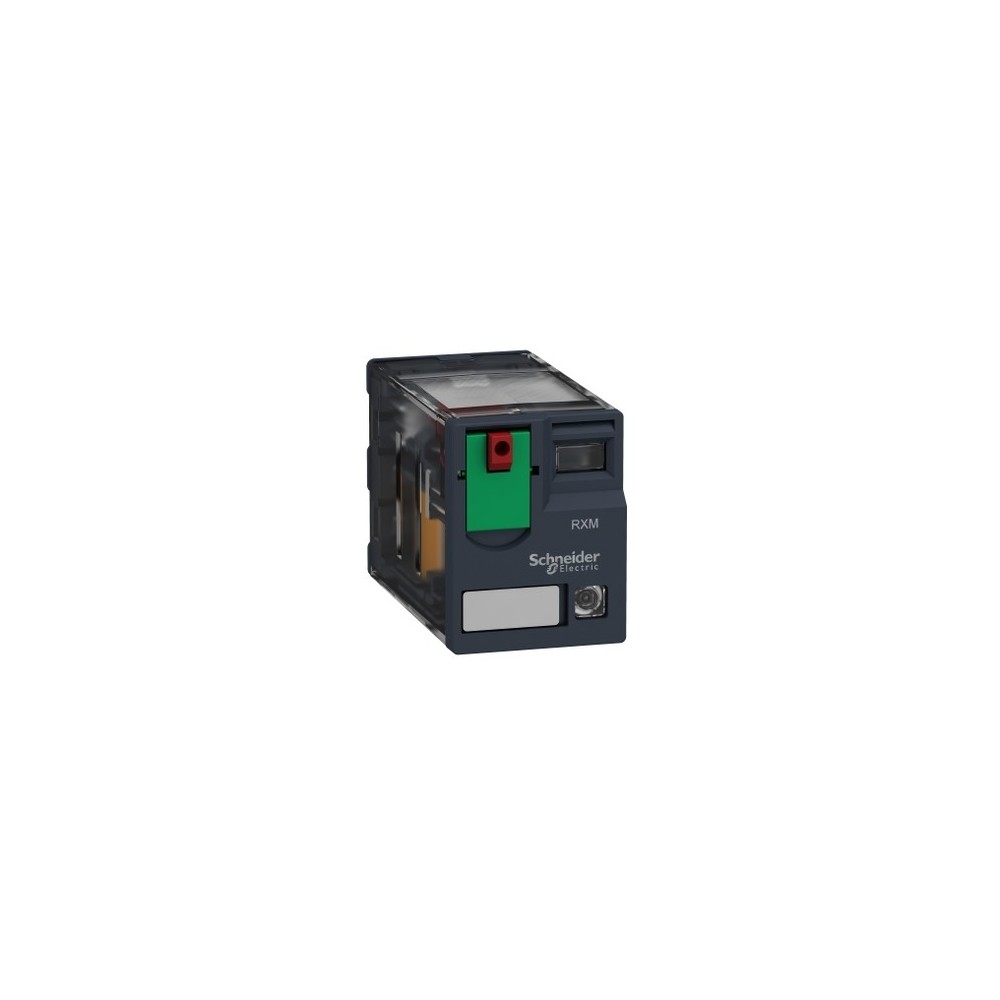

RELAIS MINIATURE 4 CO AVEC LED 230V AC

RELAIS MINIATURE 4 CO AVEC LED 230V AC

RXM4AB2P7
Neuf

Relais miniature - test+DEL - 4OF - 12A - 230Vca - relais miniature

Dépêchez-vous! seulement 2 articles laissés en stock.
17 756 Ar
HT
Quantité

Derniers articles en stock
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

DESCRIPTION :

Principales

Gamme de produit

Relais électromécanique Harmony

Nom de gamme

RXM series

Type de produit ou équipement

Relais enfichable

Type de relais

Miniature relay

Description des contacts

4 F/O

Etat LED

Avec

Type de commande

Bouton de test verrouillable

[Uc] tension circuit de commande

230 V CA 50/60 Hz

[Ithe] courant thermique d'emploi sous enveloppe

6 A

Continuous output current

5 A



Complémentaires

Capacité de commutation minimum

170 mW à 10 mA, 17 V

Durée de vie électrique

100000 cycles pour résistive charge

Consommation moyenne en VA

1,2 à 60 Hz

Limites de la tension assignée d'emploi

184...253 V CA

: RXM4AB2P7
: 2 Produits
Dépêchez-vous! seulement 2 articles laissés en stock.
Neuf

Téléchargement

RELAIS MINIATURE 4

RELAIS MINIATURE 4 CO AVEC LED 230V AC

Téléchargement (914.56KB)
