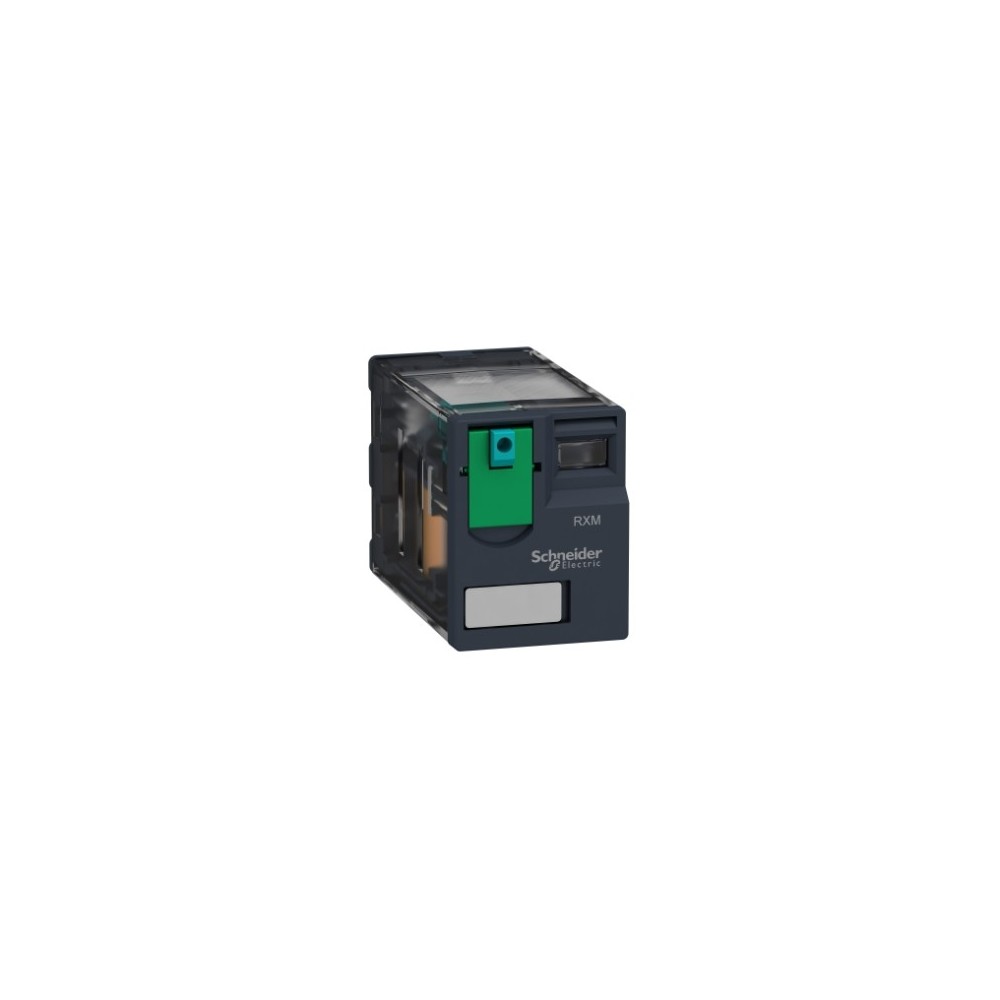

RELAIS MINIATURE 4 CO  110V DC

RELAIS MINIATURE 4 CO 110V DC

RXM4AB1FD
Neuf

Relais d'Harmony RXM - relais miniature - embrochable - test - 4OF - 12A - 110Vcc

Dépêchez-vous! seulement 10 articles laissés en stock.
17 758 Ar
HT
Quantité

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

DESCRIPTION :

Principales

Gamme de produit

Relais électromécanique Harmony

Nom de gamme

RXM series

Type de produit ou équipement

Relais enfichable

Type de relais

Miniature relay

Description des contacts

4 F/O

Etat LED

Sans

Type de commande

Bouton de test verrouillable

[Uc] tension circuit de commande

110 V CC

[Ithe] courant thermique d'emploi sous enveloppe

6 A

Continuous output current

5 A



Complémentaires

Capacité de commutation minimum

170 mW à 10 mA, 17 V

Durée de vie électrique

100000 cycles pour résistive charge

Limites de la tension assignée d'emploi

88...121 V CC

: RXM4AB1FD
: 10 Produits
Dépêchez-vous! seulement 10 articles laissés en stock.
Neuf
