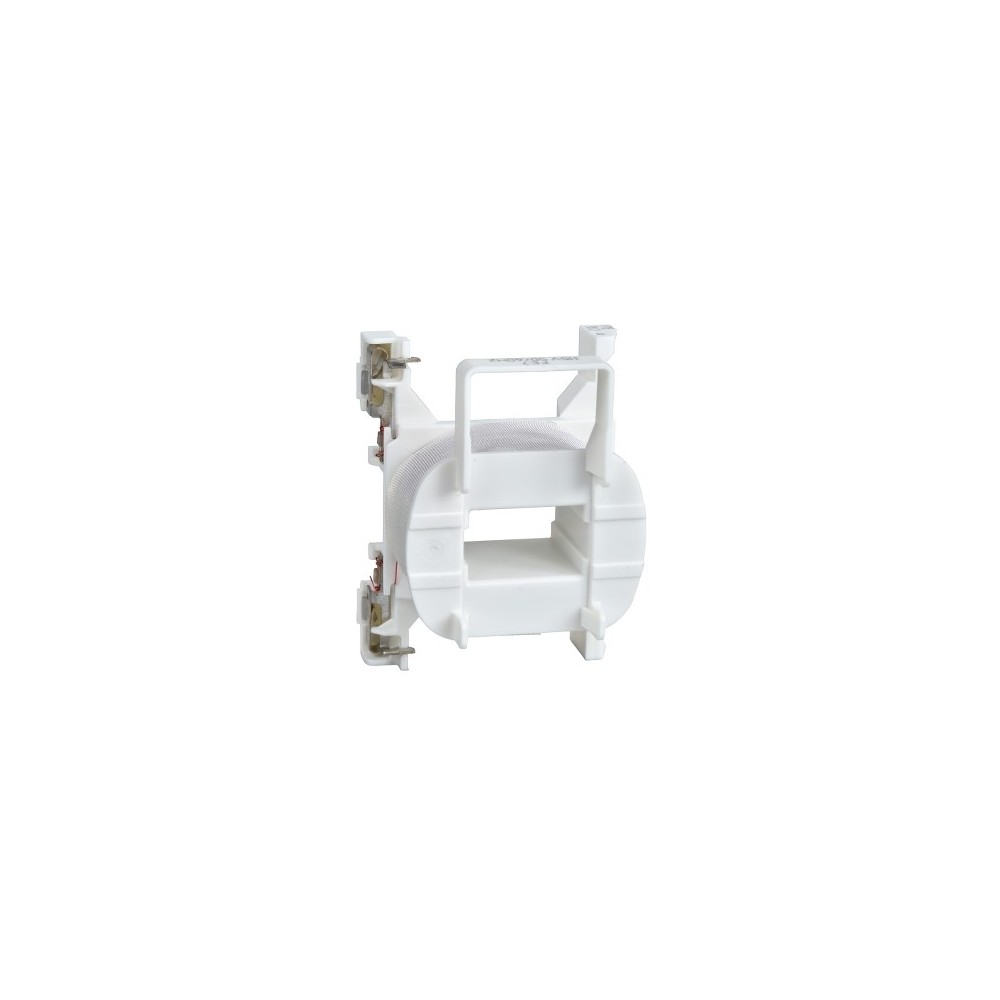

BOBINE CONTACTEUR LC1D09-38 LC1DT20-DT40 400VAC 50/60HZ

BOBINE CONTACTEUR LC1D09-38 LC1DT20-DT40 400VAC 50/60HZ

LXD1V7
Neuf

Tesys D - coil pour contacteurs CAD et LC1D de 9...38A - 400VCA 50/60Hz

Dépêchez-vous! seulement 106 articles laissés en stock.
122 018 Ar
HT
Quantité

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Principales
Gamme TeSys
Type de produit ou équipement Bobine de contacteur
Nom de l'appareil LXD1
Type de circuit de commande CA à 50/60 Hz
[Uc] tension circuit de commande 400 V CA 50/60 Hz
Résistance moyenne 1633 Ohm à 20 °C
Inductance de circuit fermé 60 H
Compatibilité produit CAD
LC1DT20...DT40
LC1D09...D38
Durée de vie mécanique 15 Mcycles
Vitesse de commande maxi 3600 cyc/h 60 °C

Complémentaires
Technologie bobine Sans module d'antiparasitage intégré
: LXD1V7
: 106 Produits
Dépêchez-vous! seulement 106 articles laissés en stock.
Neuf

Téléchargement

BOBINE CONTACTEUR

BOBINE CONTACTEUR LC1D09-38 LC1DT20-DT40 400VAC 50/60HZ

Téléchargement (238.75KB)
