BOBINE 380-400V 50/60HZ

BOBINE 380-400V 50/60HZ

LX1D2Q7
Neuf

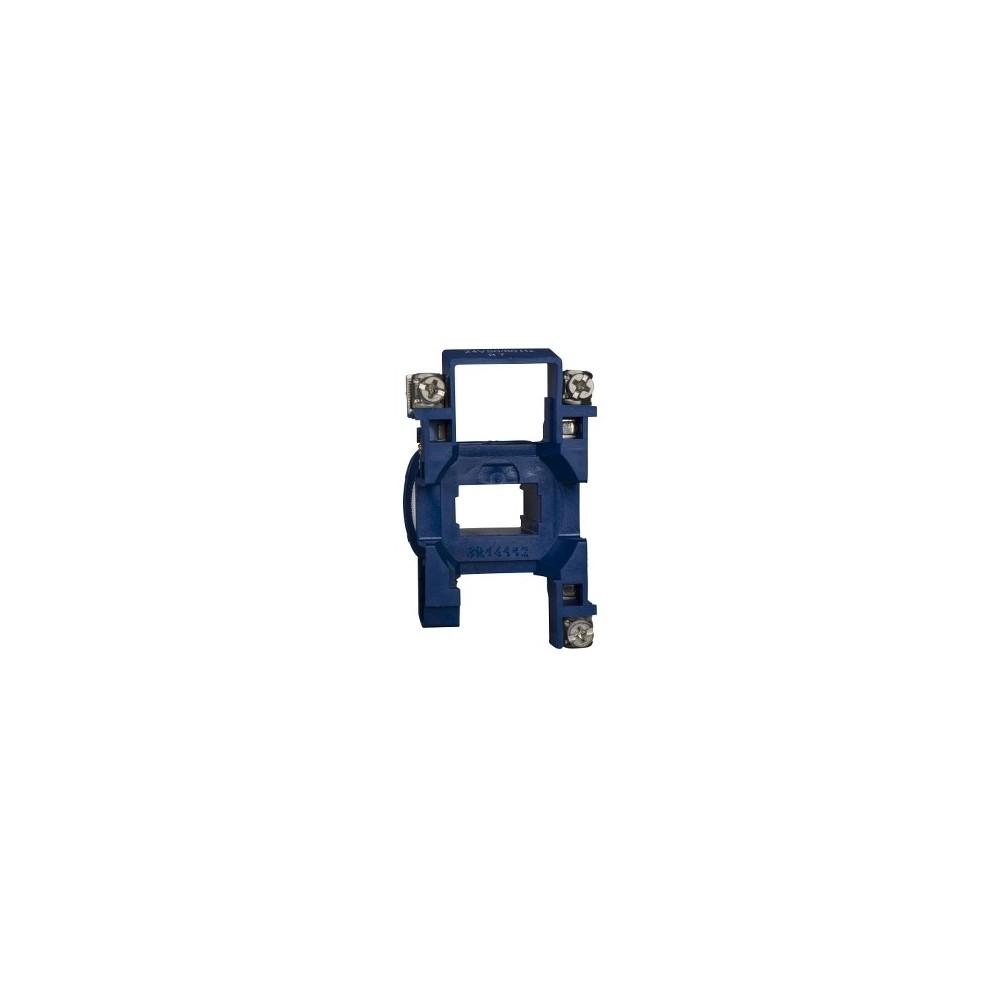

bobine LX1D 380 à 400 V CA à 50 et 60Hz

Dépêchez-vous! seulement 115 articles laissés en stock.
98 160 Ar
HT
Quantité

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Principales
Gamme TeSys
Type de produit ou équipement Bobine de contacteur
Nom de l'appareil LX1D2
Type de circuit de commande CA à 50/60 Hz
[Uc] tension circuit de commande 380...400 V CA 50/60 Hz
Résistance moyenne 1580 Ohm à 20 °C
Inductance de circuit fermé 60 H
Compatibilité produit LC1D09...D18

Complémentaires
Technologie bobine Sans module d'antiparasitage intégré
Plage de tension du circuit de commande Opérationnel: 0,8 à 1,1 Uc at 50/60 Hz (at <55 °C)
Puissance d'appel en VA 70 VA 50/60 Hz cos phi 0,75 (at 20 °C)
: LX1D2Q7
: 115 Produits
Dépêchez-vous! seulement 115 articles laissés en stock.
Neuf

Téléchargement
