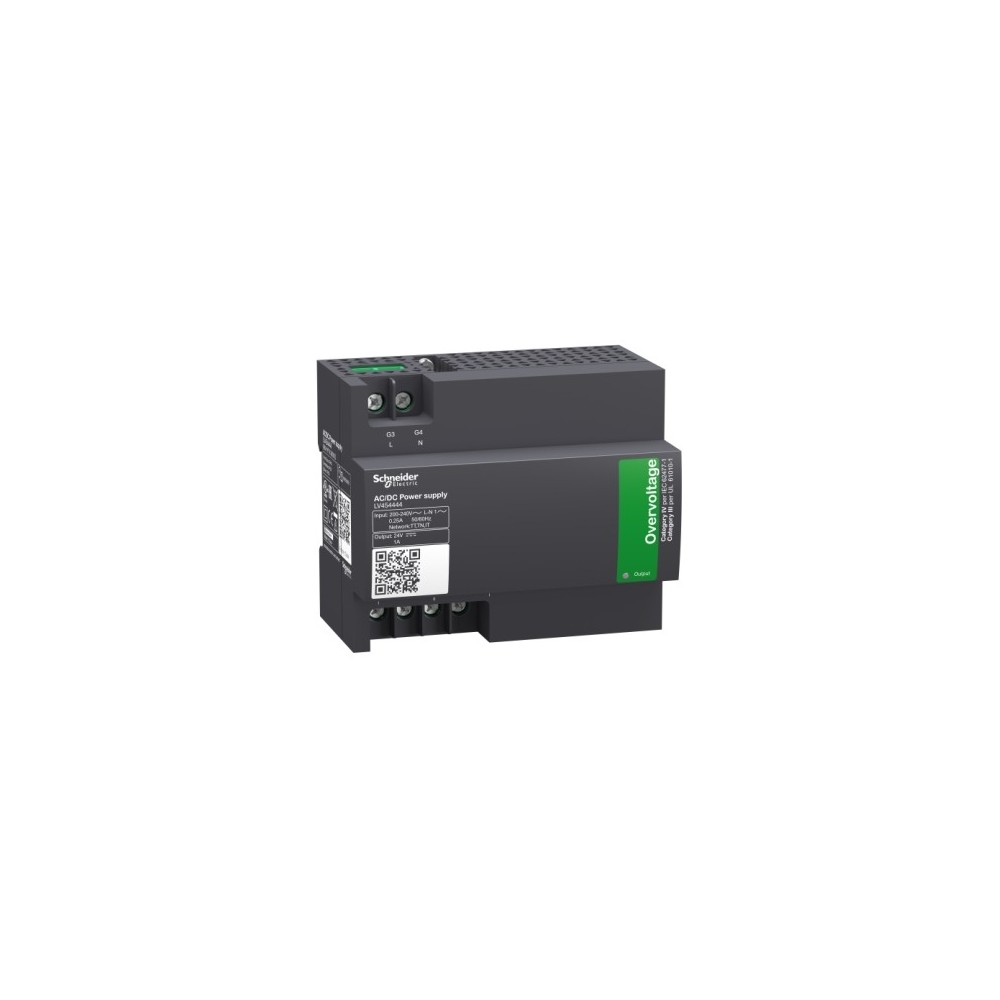

MODULE ALIMENTATION 200-240VAC

MODULE ALIMENTATION 200-240VAC

LV454444
Neuf

Module d'alimentation externe, tension d'entrée 200 à 240 V CA 50/60 Hz, tension de sortie 24 V CC, courant de sortie 1 A

En rupture de stock
955 499 Ar
HT
Quantité

Rupture de stock
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Principales
Type de produit ou équipement Module d'alimentation électrique externe
Application de l'appareil Alimentation
Compatibilité de gamme MasterPacT MasterPacT MTZ
MasterPacT MasterPacT NT
MasterPacT MasterPacT NW
ComPacT ComPacT NSX
ComPacT ComPacT NSX DC
ComPacT ComPacT NS630b...1600
ComPacT ComPacT NS1600b...3200
PowerPacT PowerPacT H
PowerPacT PowerPacT J
PowerPacT PowerPacT L
PowerPacT PowerPacT P
PowerPacT PowerPacT R
Type d'accessoires / pièces séparées Accessoires d'unité de contrôle
Accessoires unité déclenchement

Complémentaires
Nom du déclencheur MicroLogic
Type d'alimentation Mode commutation régulée
[Us] tension d'alimentation 200...240 V CA 50/60 Hz tolérance : +10 % -15 %
Limites de la tension d'entrée 170...264 V CA à 47,5…63 Hz
Tension de sortie 24 V CC +/-5 %
Catégorie de surtension IV conforming to CEI 62477-1
III conforming to UL 61010-1
Courant de sortie module d'alimentation 1 A
: LV454444
En rupture de stock
Neuf

Téléchargement

MODULE ALIMENTATION

MODULE ALIMENTATION 200-240VAC

Téléchargement (246.29KB)
