INTERFACE ENTREE/SORTIE POUR DISJ.BT

INTERFACE ENTREE/SORTIE POUR DISJ.BT

LV434063
Neuf

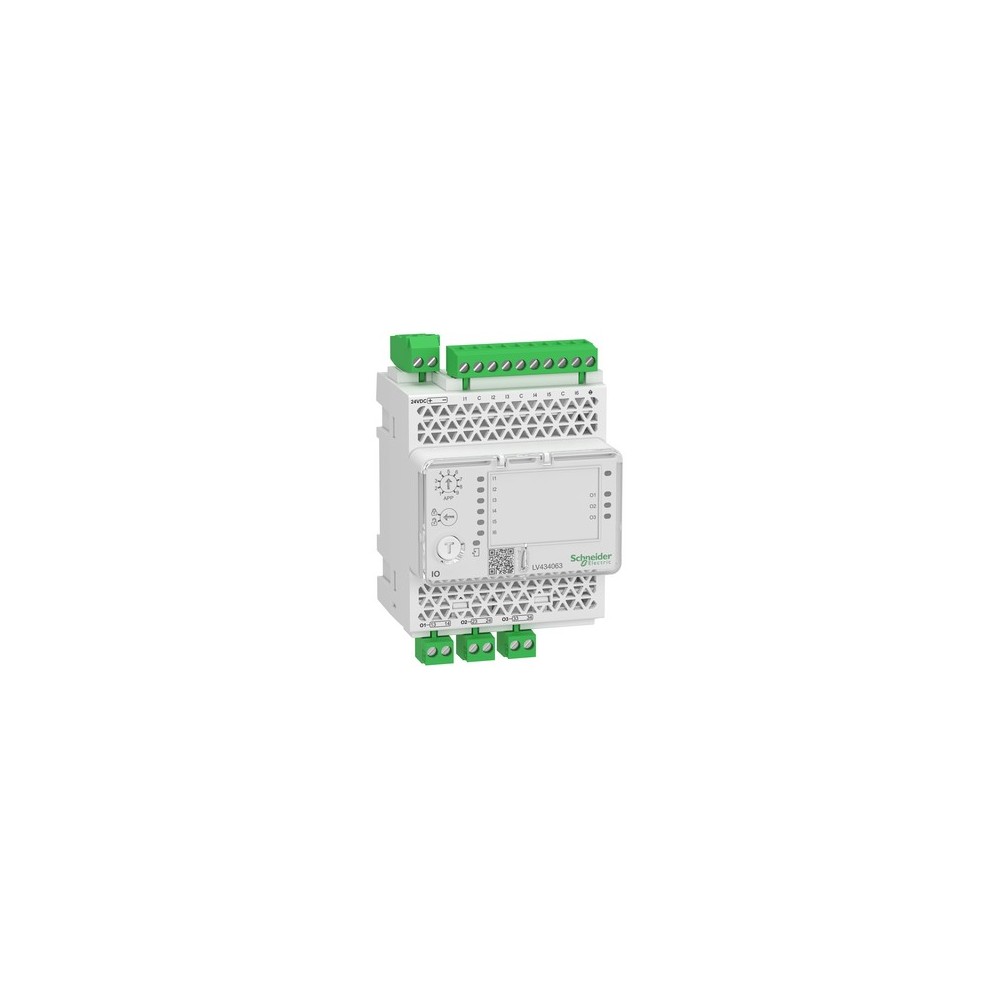

EnerLinx - module I/O, Interface pour disjoncteurs Compact et Masterpact

En rupture de stock
1 996 267 Ar
HT
Quantité

Rupture de stock
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Principales
Nom de l'appareil E/S
Type de produit ou équipement Module E/S
Compatibilité de gamme MasterPacT MasterPacT MTZ
MasterPacT MasterPacT NT
MasterPacT MasterPacT NW
ComPacT ComPacT NSX
ComPacT ComPacT NS630b...1600
ComPacT ComPacT NS1600b...3200
PowerPacT PowerPacT J
PowerPacT PowerPacT L
PowerPacT PowerPacT H
PowerPacT PowerPacT P
PowerPacT PowerPacT R
Nom du produit Enerlin'X IO

Complémentaires
Type de réseau de communication Universal Logic Plug sur 2 connecteurs RJ45
[Us] tension d'alimentation 24 V CC - 20...10 %
Consommation électrique 165 mA
Compatibilité électromagnétique Test d'immunité aux transitoires électriques rapides conforming to EN/IEC 61000-4-2
Immunité aux champs rayonnés 10 V/m conforming to EN/IEC 61000-4-3
Test d’immunité aux surtensions conforming to EN/IEC 61000-4-5
Nombre d'entrées 6 logique
1 analogique
Type d'entrée Logique à état 1: 19,8…25,2 V - CC - 6,1…8,8 mA
Logique à état 0: 0…19,8 V - CC - 0 mA
: LV434063
En rupture de stock
Neuf

Téléchargement

INTERFACE

INTERFACE ENTREE/SORTIE POUR DISJ.BT

Téléchargement (262.34KB)
