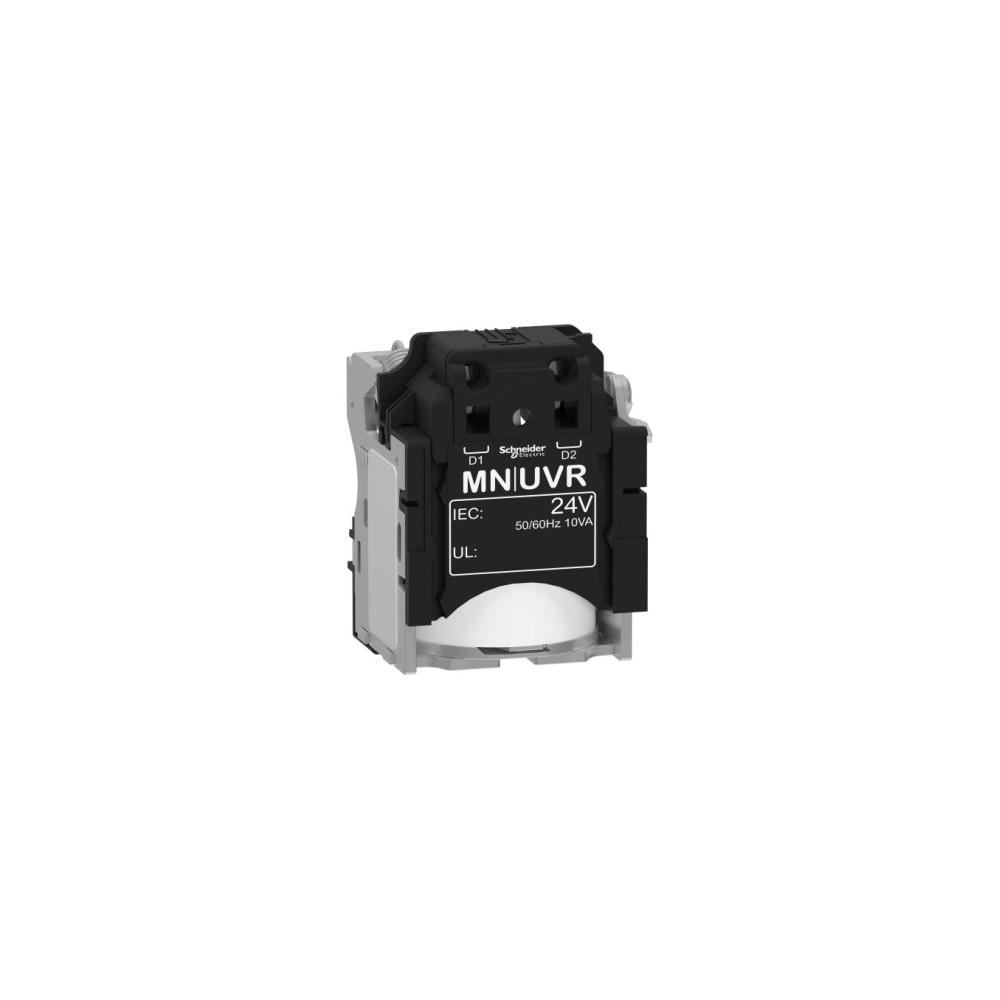

BOBINE MN 24V 50/60HZ

BOBINE MN 24V 50/60HZ

LV429404
Neuf

BOBINE MN 24V 50/60HZ ACCESSOIRE DISJONCTEUR NSX100-630

Dépêchez-vous! seulement 4 articles laissés en stock.
313 470 Ar
HT
Quantité

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Principales
Gamme ComPacT
Gamme de produit ComPacT NSX100...250
ComPacT NSX100...250
ComPacT NSX400...630
ComPacT NSX400...630
ComPacT NSX100...250 DC
ComPacT NSX100...250 DC
ComPacT NSX100...250 DC PV
ComPacT NSX100...250 DC PV
ComPacT NSX400...630 DC
ComPacT NSX400...630 DC
ComPacT NSX400...630 DC PV
ComPacT NSX400...630 DC PV
Nom de l'appareil MN
Type de produit ou équipement Libération de tension
Application de l'appareil Contrôle
Type de déclencheur voltmétrique Déclencheur d'ouverture à émission MX (shunt trip release = shunt trip)
Déclencheur à minimum de tension
[Uc] tension circuit de commande 24 V CA 50/60 Hz
Compatibilité de gamme ComPacT ComPacT NSX
ComPacT ComPacT NSX DC
ComPacT ComPacT NSX
ComPacT ComPacT NSX DC
EasyPact EasyPact CVS
PowerPacT PowerPacT Multistandard

Complémentaires
Seuil de fonctionnement 0,35 à 0,7 x Un ouverture
0,85 x Un fermeture
Temps de réponse 50 ms
Puissance au maintien 5 VA
Puissance d'appel de l'alimentation 10 VA
Borne de raccordement auxiliaire Ressort 0,5…1,5 mm² (AWG 20...AWG 16)
Longueur de dénudage des fils 7 mm
: LV429404
: 4 Produits
Dépêchez-vous! seulement 4 articles laissés en stock.
Neuf
