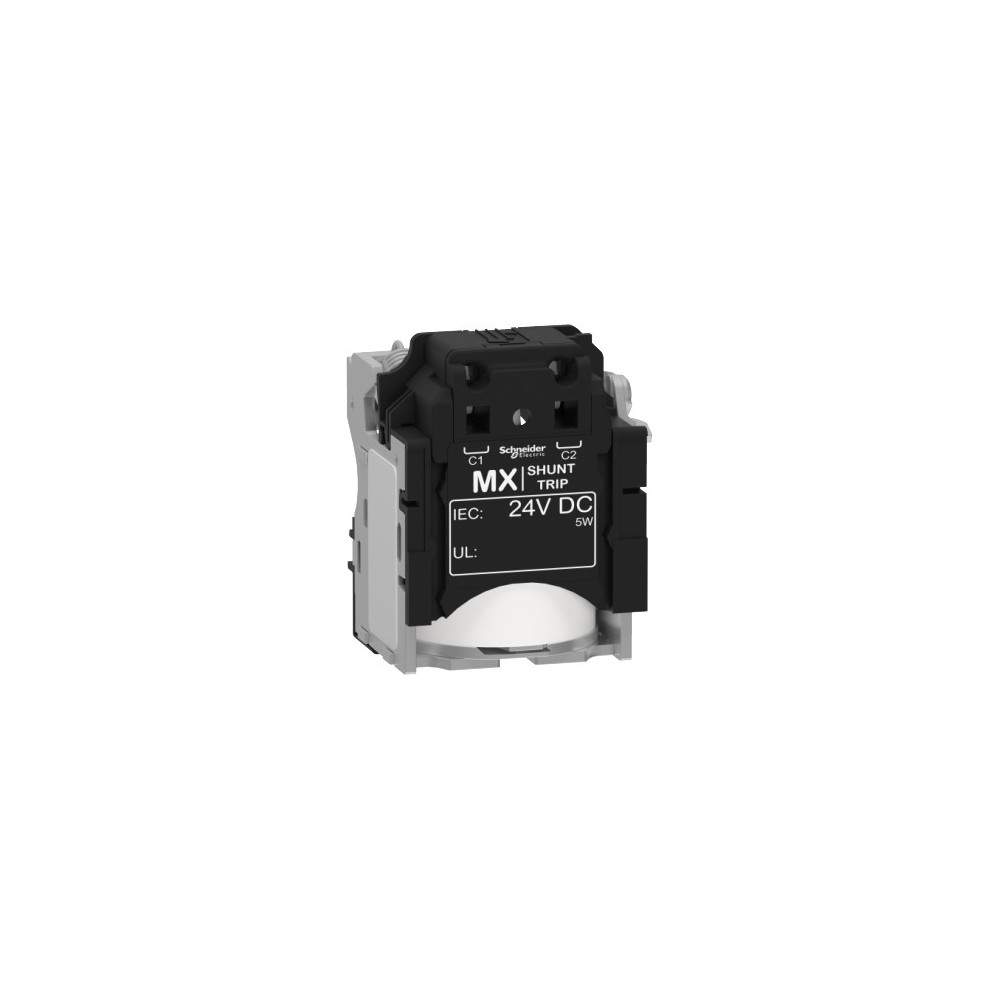

BOBINE MX 24V CC

BOBINE MX 24V CC

LV429390
Neuf

BOBINE MX 24V CC ACCESSOIRE DISJONCTEUR NSX100-630

Dépêchez-vous! seulement 6 articles laissés en stock.
345 373 Ar
HT
Quantité

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Principales
Gamme ComPacT
Gamme de produit ComPacT NSX100...250
ComPacT NSX100...250
ComPacT NSX400...630
ComPacT NSX400...630
ComPacT NSX100...250 DC
ComPacT NSX100...250 DC
ComPacT NSX100...250 DC PV
ComPacT NSX100...250 DC PV
ComPacT NSX400...630 DC
ComPacT NSX400...630 DC
ComPacT NSX400...630 DC PV
ComPacT NSX400...630 DC PV
Easy UPS 3S
Galaxy VM
Galaxy VS
Nom de l'appareil MX
Type de produit ou équipement Libération de tension
Application de l'appareil Contrôle
Compatibilité de gamme Easy UPS 3S
Galaxy VM
Galaxy VS
Type de déclencheur voltmétrique Déclencheur d'ouverture à émission MX (shunt trip release = shunt trip)
Déclencheur à émission de tension
[Uc] tension circuit de commande 24 V CC
Compatibilité de gamme ComPacT ComPacT NSX
ComPacT ComPacT NSX DC
ComPacT ComPacT NSX
ComPacT ComPacT NSX DC
EasyPact EasyPact CVS
PowerPacT PowerPacT Multistandard

Complémentaires
Seuil de fonctionnement 0,7...1,1 x Un ouverture
Temps de réponse 50 ms
Type de signal de commande Impulsion
Maintenu
Durée de l'impulsion >= 20 ms
Puissance d'appel de l'alimentation 10 W
Borne de raccordement auxiliaire Ressort 0,5…1,5 mm² (AWG 20...AWG 16)
Longueur de dénudage des fils 7 mm
