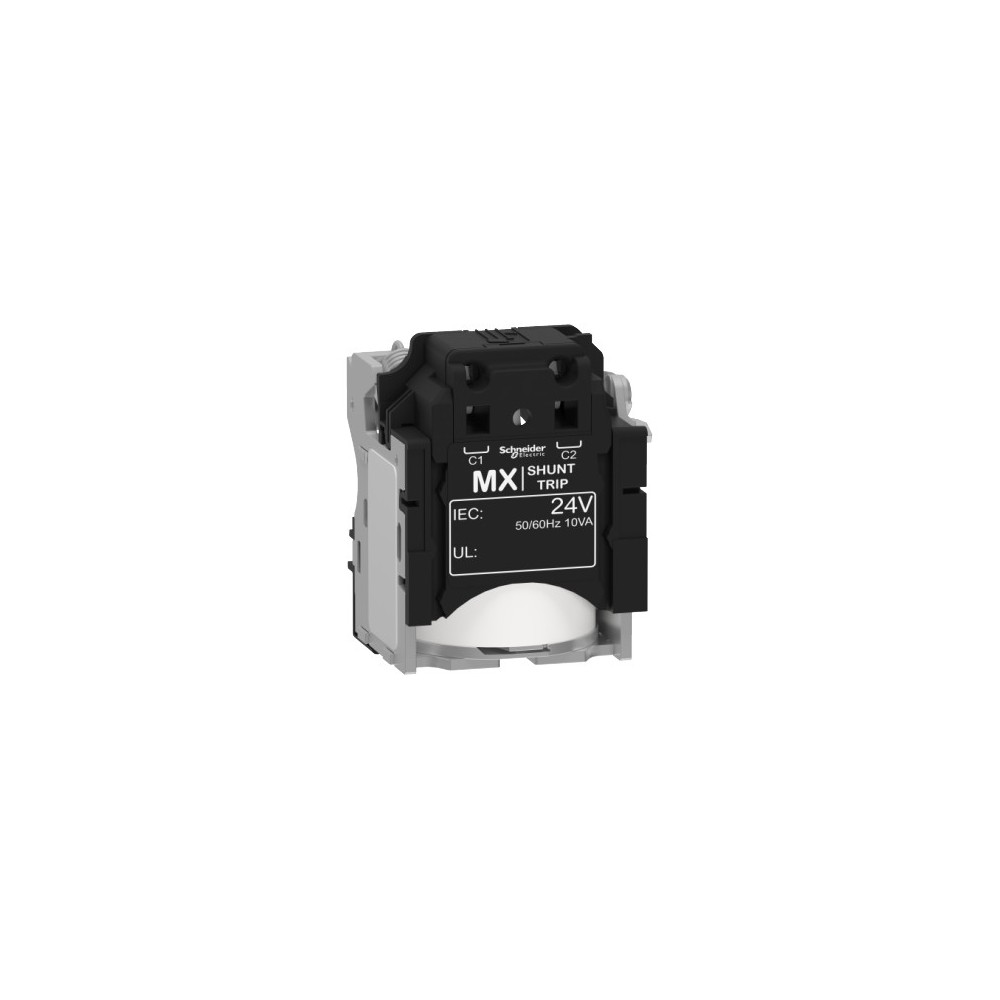

BOBINE MX 24V 50/60HZ

BOBINE MX 24V 50/60HZ

LV429384
Neuf

Compact nsx - eur voltmétrique MX - 24 Vca 50/60 Hz

Dépêchez-vous! seulement 2 articles laissés en stock.
211 369 Ar
HT
Quantité

Derniers articles en stock
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Principales
Gamme ComPacT
Gamme de produit ComPacT NSX100...250
ComPacT NSX100...250
ComPacT NSX400...630
ComPacT NSX400...630
ComPacT NSX100...250 DC
ComPacT NSX100...250 DC
ComPacT NSX100...250 DC PV
ComPacT NSX100...250 DC PV
ComPacT NSX400...630 DC
ComPacT NSX400...630 DC
ComPacT NSX400...630 DC PV
ComPacT NSX400...630 DC PV
Nom de l'appareil MX
Type de produit ou équipement Libération de tension
Application de l'appareil Contrôle
Type de déclencheur voltmétrique Déclencheur d'ouverture à émission MX (shunt trip release = shunt trip)
Déclencheur à émission de tension
[Uc] tension circuit de commande 24 V CA 50/60 Hz
Compatibilité de gamme ComPacT ComPacT NSX
ComPacT ComPacT NSX DC
ComPacT ComPacT NSX
ComPacT ComPacT NSX DC
EasyPact EasyPact CVS
PowerPacT PowerPacT Multistandard

Complémentaires
Seuil de fonctionnement 0,7...1,1 x Un ouverture
Temps de réponse 50 ms
Type de signal de commande Maintenu
Impulsion
Durée de l'impulsion >= 20 ms
Puissance d'appel de l'alimentation 10 VA
Borne de raccordement auxiliaire Ressort 0,5…1,5 mm² (AWG 20...AWG 16)
Longueur de dénudage des fils 7 mm
: LV429384
: 2 Produits
Dépêchez-vous! seulement 2 articles laissés en stock.
Neuf
