INTER COMPACT NSXM 4P 160NA EVERLINK

INTER COMPACT NSXM 4P 160NA EVERLINK

LV426612
Neuf

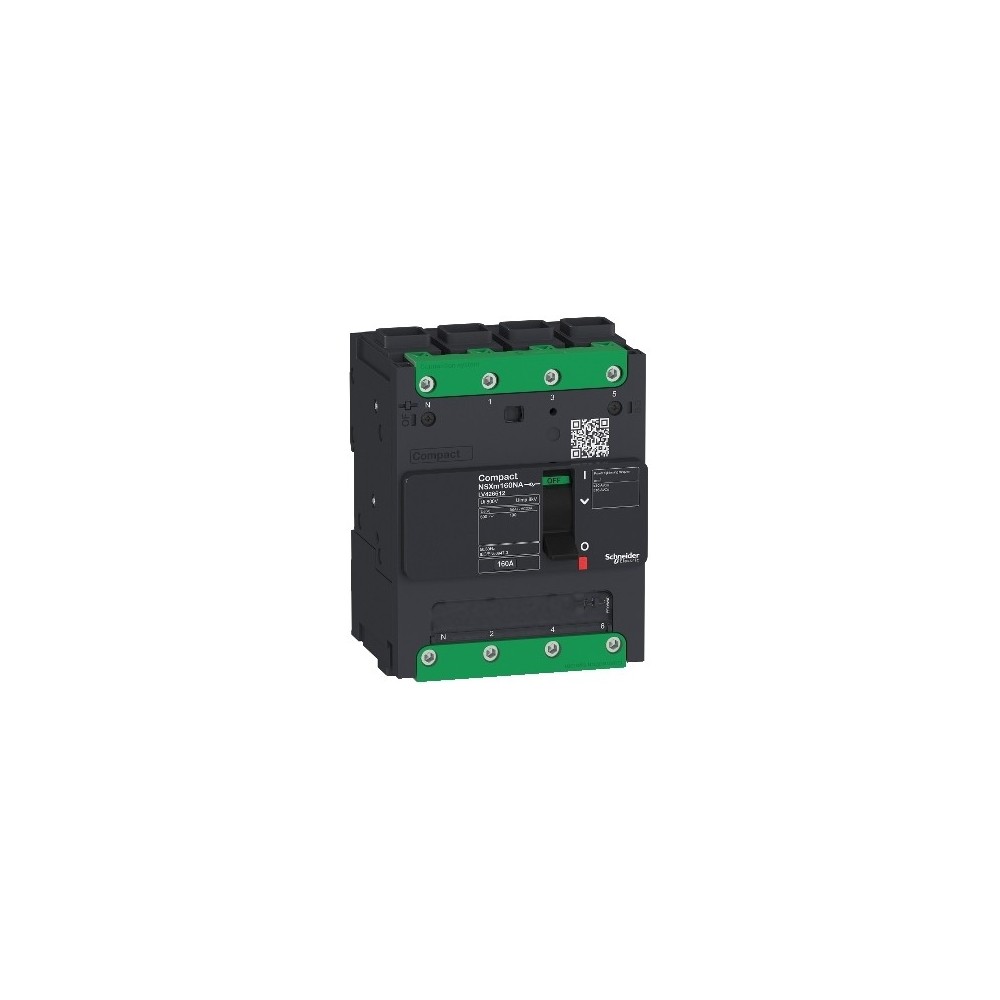

Compact NSXm - interrupteur NA - 160A - 4P - Everlink

Dépêchez-vous! seulement 2 articles laissés en stock.
1 368 887 Ar
HT
Quantité

Derniers articles en stock
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Principales
Gamme ComPacT
Nom du produit ComPacT NSXm
Type de produit ou équipement Interrupteur-sectionneur
Application de l'appareil Distribution

Complémentaires
[In] courant nominal 160 A
Description des pôles 4P
Position neutre Gauche
Type de commande Par maneton
Mode d'installation Encliquetable (35 mm DIN rail symmétrique)
Par vis (platine)
Type de réseau CA
Fréquence du réseau 50/60 Hz
[Ie] courant assigné d'emploi 100 A - catégorie d’utilisation AC-23 CA 50/60 Hz
160 A - catégorie d’utilisation AC-22 CA 50/60 Hz
[Ui] tension assignée d'isolement 800 V se conformer à CEI 60947-2
[Ue] tension assignée d'emploi 690 V CA 50/60 Hz se conformer à CEI 60947-2
[Icw] courant assigné de courte durée admissible 1,5 kA pendant 3 s se conformer à CEI 60947-3
[Icm] pouvoir assigné de fermeture en court-circuit 2,13 kA
: LV426612
: 2 Produits
Dépêchez-vous! seulement 2 articles laissés en stock.
Neuf

Téléchargement

INTER COMPACT

INTER COMPACT NSXM 4P 160NA EVERLINK

Téléchargement (265.17KB)
