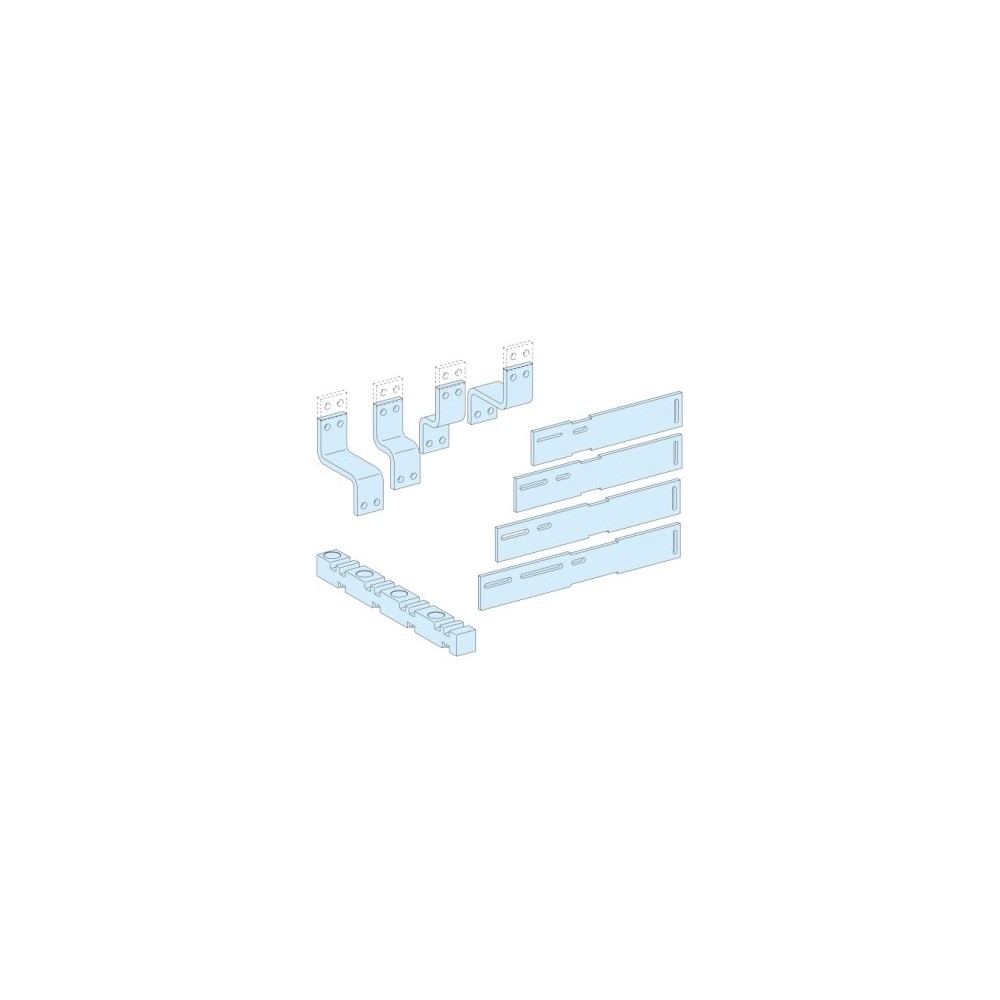

LIAISON JDBV NS800/1250 VERT. 4P

LIAISON JDBV NS800/1250 VERT. 4P

LVS04486
Neuf

PrismaSeT LIAISON 1250A NS1250 FIXE 4P

En rupture de stock
1 891 623 Ar
HT
Quantité

Rupture de stock
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Principales
gamme PrismaSeT
gamme de produits PrismaSeT P
type de produit ou de composant Raccordement
nom du produit PrismaSeT PrismaSeT P coffret
catégorie d'accessoire, d'élément séparé Bandeaux d'alimentation
normes EN 61439-2, coffret intérieur
EN 61439-1, coffret intérieur
certifications du produit ASTA

Complémentaires
connexion armoire-appareil Rail Linergy
description des pôles 4P
description de l'installation Armoire - largeur 650 mm
profondeur armoire 400 mm: façade
400 + 400 mm: arrière
produit installé Compact: fixe NS630b...1000 - contrôle : touche à bascule verticale installation
Compact: fixe NS1250 - contrôle : touche à bascule verticale installation
Compact: fixe NS630b...1000 - contrôle : poignée rotative frontale directe verticale installation
Compact: fixe NS1250 - contrôle : poignée rotative frontale directe verticale installation
Compact: fixe NS630b...1000 - contrôle : mécanisme moteur verticale installation
Compact: fixe NS1250 - contrôle : mécanisme moteur verticale installation
[Ie] courant assigné d'emploi 1250 A
section du jeu de barre 80 x 10 mm
hauteur 150 mm
largeur 550 mm
profondeur 300 mm
poids du produit 8,74 kg
quantité du lot Jeu de 1
: LVS04486
En rupture de stock
Neuf

Téléchargement

LIAISON JDBV

LIAISON JDBV NS800/1250 VERT. 4P

Téléchargement (258.69KB)
