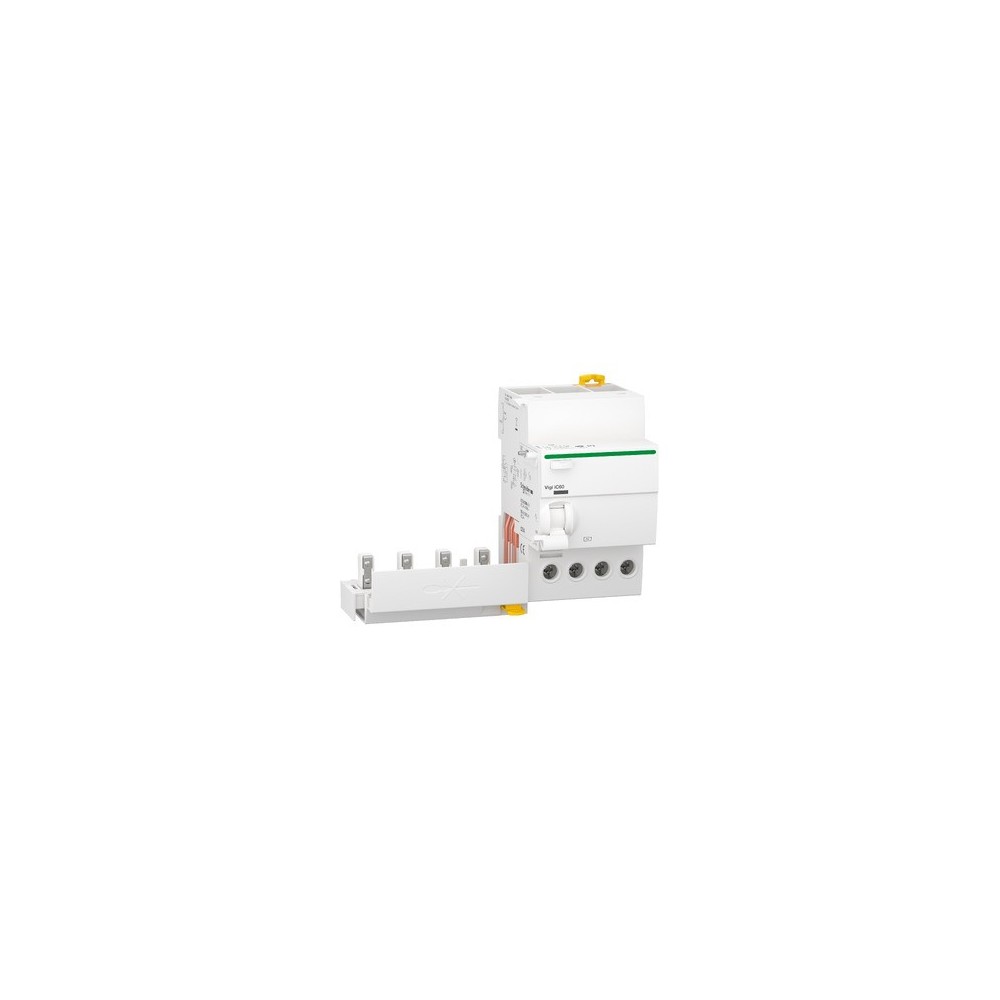

BLOC ACTI9 VIGI IC60 4P 25A 300MA AC-TYPE

BLOC ACTI9 VIGI IC60 4P 25A 300MA AC-TYPE

A9Q14425
Neuf

Acti9 Vigi iC60 - Bloc diff - 4P 25A 300mA - 230Vca à 400Vca - Type AC

Dépêchez-vous! seulement 16 articles laissés en stock.
760 452 Ar
HT
Quantité

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Principales
Gamme Acti9
Nom du produit Acti9 Vigi iC60
Type de produit ou équipement Dispositif différentiel résiduel complémentaire
Nom de l'appareil Vigi iC60
Description des pôles 4P
In courant assigné d'emploi 25 A
Sensibilité du différentiel 300 mA
Temporisation protection différentielle Instantané
Type de protection contre les fuites à la terre Type AC
Type de réseau CA
Fréquence du réseau 50/60 Hz
[Ue] tension assignée d'emploi 230…415 V CA 50/60 Hz se conformer à EN/IEC 61009-1
230…415 V CA 50/60 Hz se conformer à EN/IEC 61009-2-1
Normes EN/IEC 61009-1
EN/IEC 61009-2-1
Pas de 9 mm 6

Complémentaires
Position de l'appareillage dans l'installation Sortie
Technologie de déclenchement sur courant résiduel Indépendant de la tension
[Ui] tension assignée d'isolement 500 V CA 50/60 Hz se conformer à CEI 60947-2
: A9Q14425
: 16 Produits
Dépêchez-vous! seulement 16 articles laissés en stock.
Neuf

Téléchargement

BLOC ACTI9

BLOC ACTI9 VIGI IC60 4P 25A 300MA AC-TYPE

Téléchargement (202.96KB)
