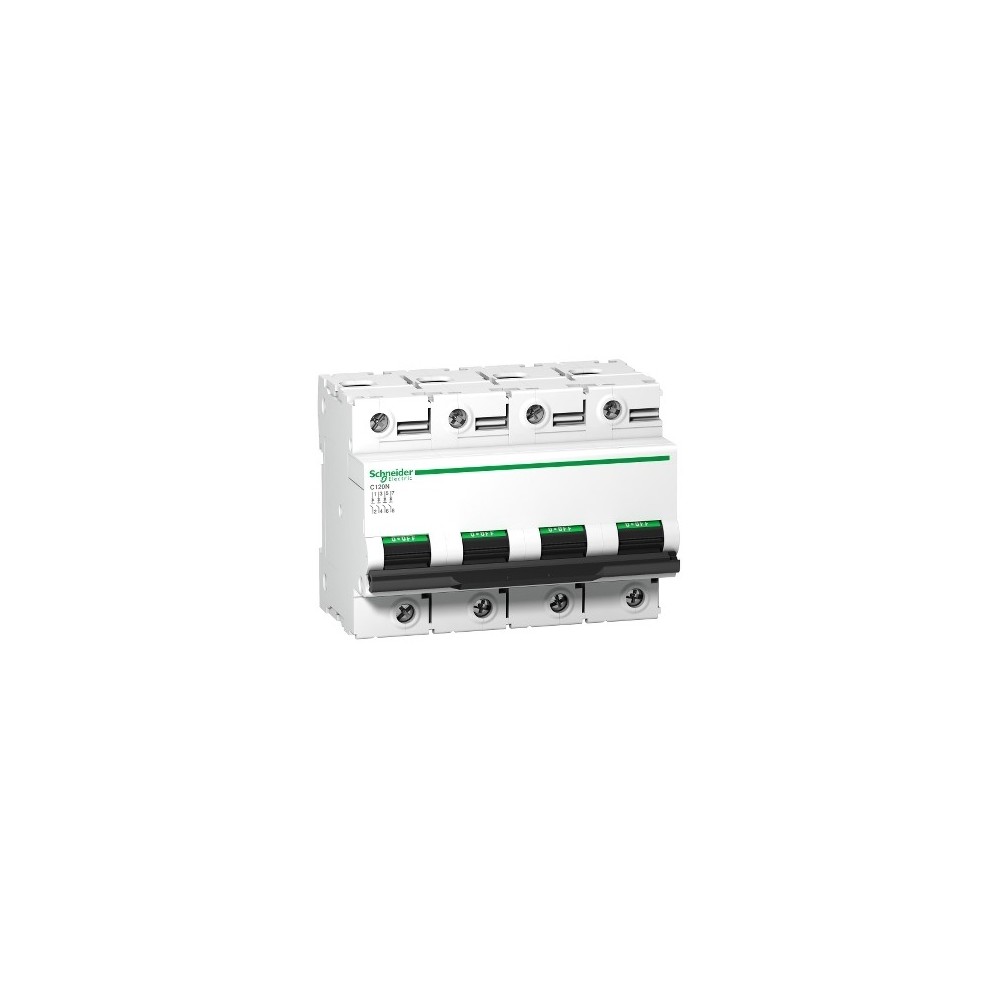

DISJ C120N 4P C125A 10KA 415V

DISJ C120N 4P C125A 10KA 415V

A9N18377
Neuf

Acti 9 C120N Disjoncteur Modulaire 4P 125A Courbe C 10kA/10000A

Dépêchez-vous! seulement 3 articles laissés en stock.
2 834 231 Ar
HT
Quantité

Derniers articles en stock
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Principales
Gamme Acti9
Nom du produit Acti9 C120
Type de produit ou équipement Disjoncteur miniature
Nom de l'appareil C120N
Application de l'appareil Distribution
Description des pôles 4P
Nombre de pôles protégés 4
Position neutre Gauche
[In] courant nominal 125 A à 30 °C
Type de réseau CA
Technologie du déclencheur Thermique-magnétique
Courbe de déclenchement C
Pouvoir de coupure 10000 A Icn à 400 V CA 50/60 Hz conforme à EN/IEC 60898-1
6 kA Icu à 440 V CA 50/60 Hz conforme à EN/IEC 60947-2
20 kA Icu à 220...240 V CA 50/60 Hz conforme à EN/IEC 60947-2
10 kA Icu à 380...415 V CA 50/60 Hz conforme à EN/IEC 60947-2
10 kA Icu à <= 500 V CC conforme à EN/IEC 60947-2
Aptitude au sectionnement Oui conforme à CEI 60947-2
Normes EN/IEC 60898-1
EN/IEC 60947-2
Certifications du produit EAC

Complémentaires
Fréquence du réseau 50/60 Hz
[Ue] tension assignée d'emploi 380...415 V CA 50/60 Hz
<= 500 V CC
220...240 V CA 50/60 Hz
440 V CA 50/60 Hz
230...400 V CA 50/60 Hz
Limite de déclenchement magnétique 5...10 x In
: A9N18377
: 3 Produits
Dépêchez-vous! seulement 3 articles laissés en stock.
Neuf

Téléchargement

DISJ

DISJ C120N 4P C125A 10KA 415V

Téléchargement (251.5KB)
